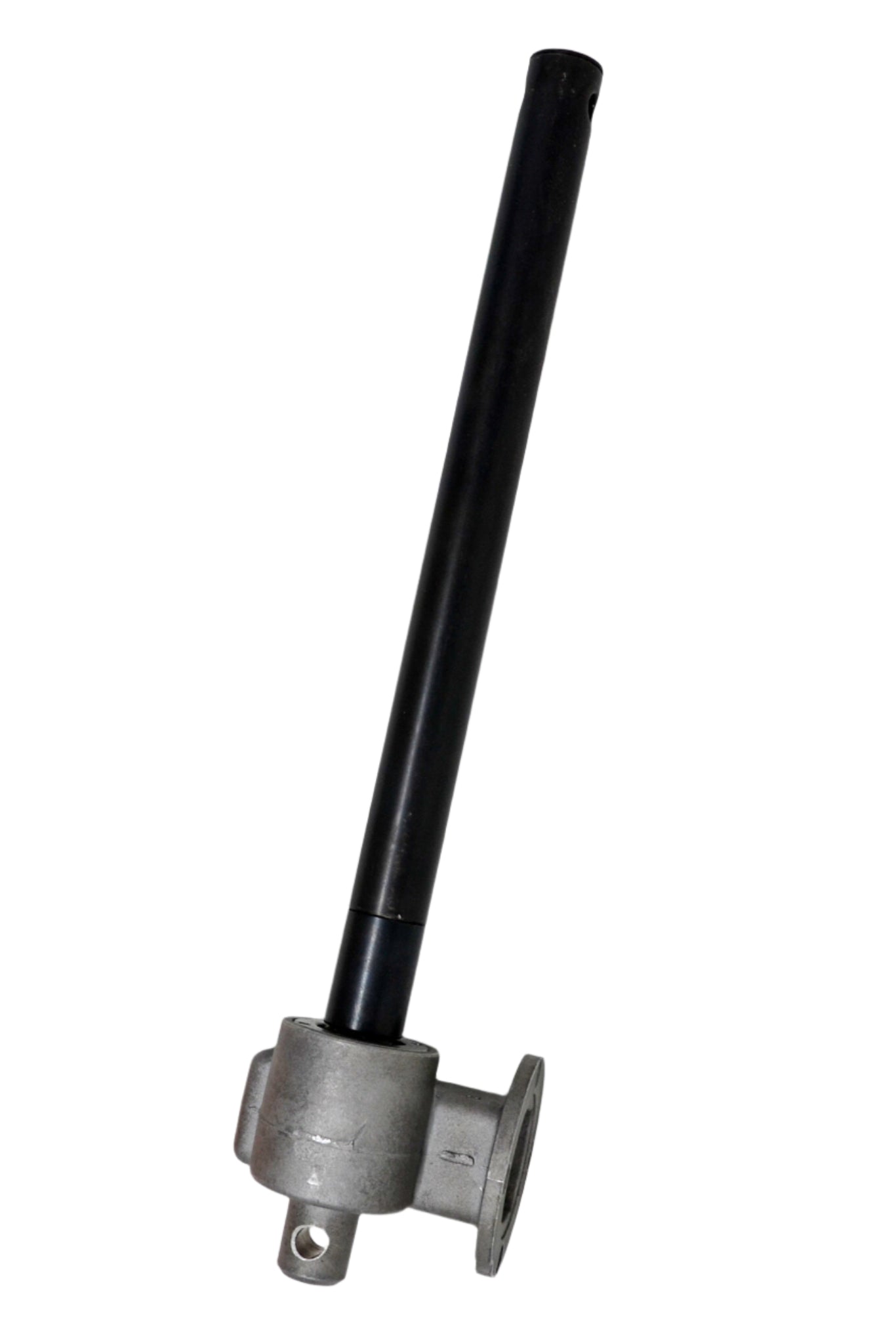

Actuator Post – Long Stroke (for 21"–29" Table Height)
Actuator Post – Long Stroke (for 21"–29" Table Height)
Couldn't load pickup availability
The Long-Stroke Actuator Post is engineered for Leander Motorized Flexion Distraction Tables, offering a height range of 21" to 29" and providing extended vertical travel for clinicians who prefer higher working heights or need to accommodate larger patients. Like the short-stroke version, it is made in the USA from durable cast iron and alloy steel, and functions as a ball screw jack within the table’s height adjustment system.
This variant also features a built-in freewheeling mechanism, which prevents mechanical overtravel at the end of the stroke by camming the internal ball cage against stroke-limiting stop pins. The gear motor for this assembly is not included.
Key Features:
- Extended vertical stroke for greater height range
- Built-in freewheeling feature—no external limit switches required
- High-strength ball screw, nut, and cage—all heat-treated for longevity
- Designed to pair with a single-stage worm gear reducer (sold separately)
Designed for use with Leander 950 Series tables configured for the 21"–29" height range.
