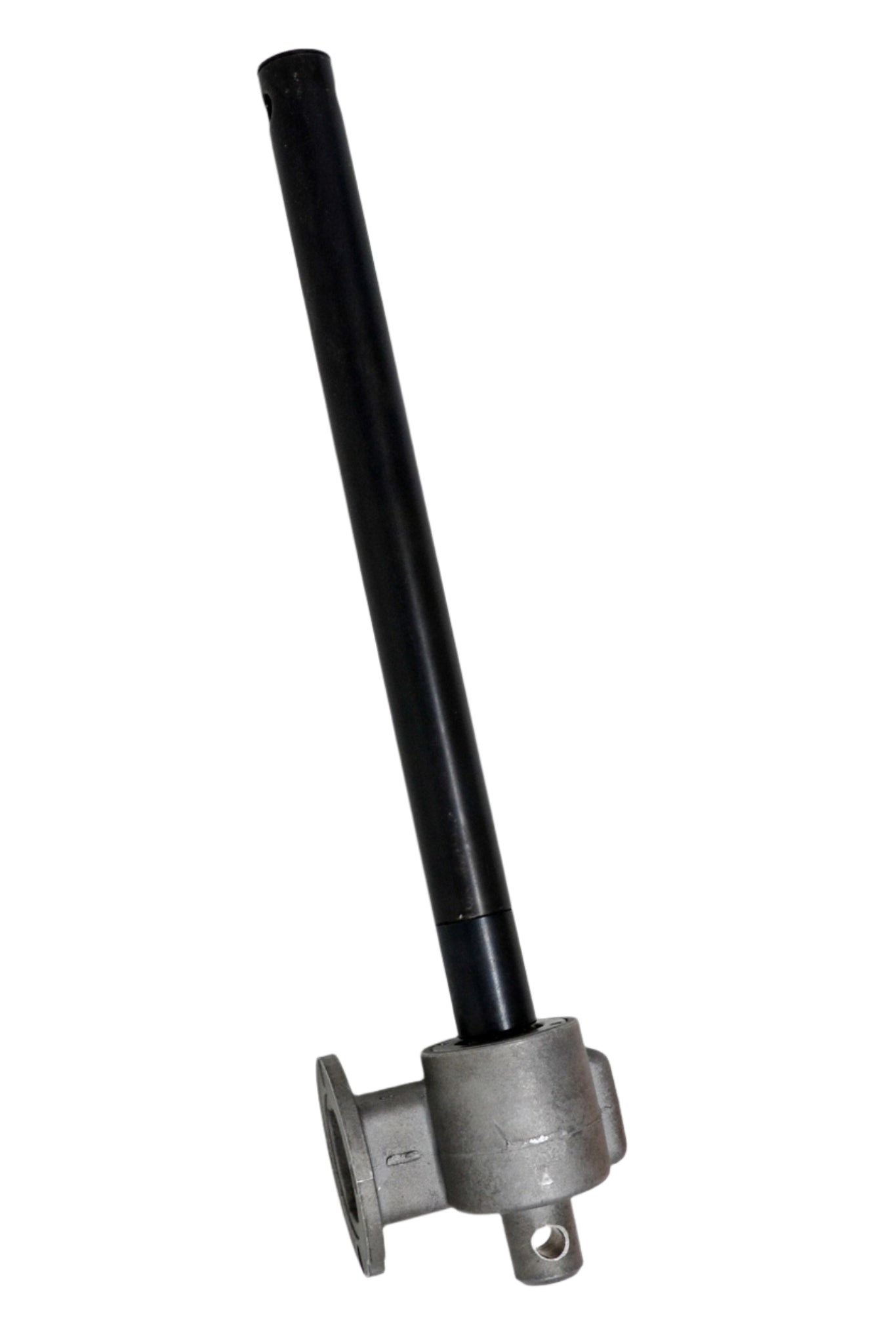

Actuator Post – Short Stroke (for 18.5"–24" Table Height)

The Short-Stroke Actuator Post is a precision-machined, American-made component designed for use in Leander Motorized Flexion Distraction Tables with a height range of 18.5" to 24". Built from cast iron and heat-treated alloy steel, this post operates as a ball screw jack, converting rotary motion from a gear motor (sold separately) into smooth, controlled vertical lift.

At the core of the actuator is a hardened steel ball screw mechanism featuring a built-in freewheeling safety function. When the post reaches the end of its factory-set travel stroke, the internal ball cage cams against stop pins to disengage further motion, eliminating the need for external limit switches.

Key Features:

• Engineered for shorter vertical travel (ideal for low-profile table models)
• Internal freewheeling safety to prevent overtravel
• Factory-set stroke limits for consistent performance
• Heat-treated alloy steel ball screw, nut, and cage for long wear life
• Interfaces with single-stage worm gear reducer (not included)

Compatible with Leander 950 Series tables specified for the 18.5"–24" variable height range.
