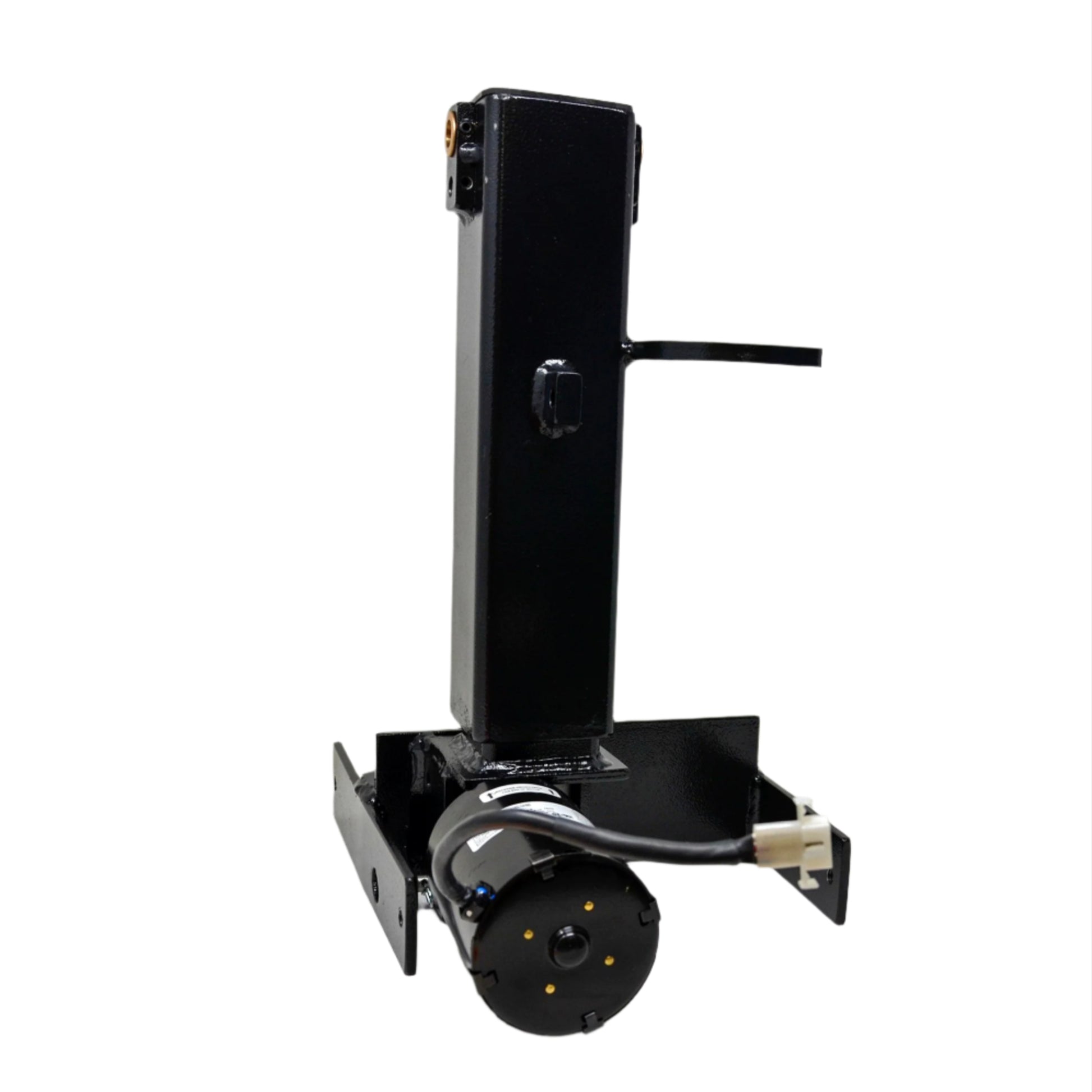

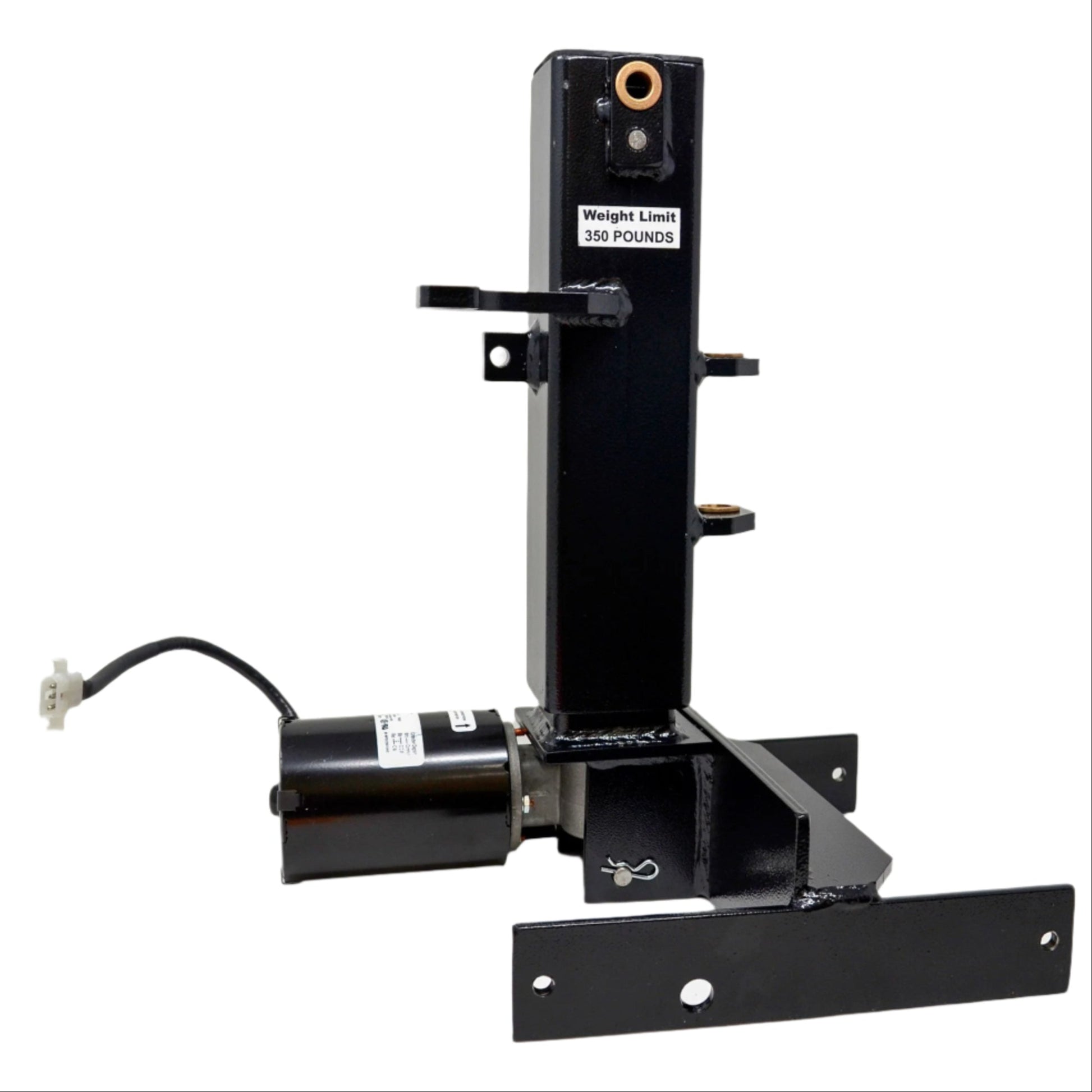

Elevation Uplift Assembly – Long Stroke (for 21"–29" Table Height)

The Long-Stroke Elevation Uplift Assembly is a fully integrated lift column for Leander 950 Series tables, requiring an elevation range of 21" to 29". Engineered and built in America, this robust center post provides a stable foundation and powerful lift for high-clearance applications, especially in taller clinical environments or with larger patient bases.

The system features a black powder-coated steel outer tube, with all frame mounting brackets, and installed over a precision-shimmed inner tube for enhanced structural integrity. The base of the inner tube includes a mount bracket for direct installation into the table’s main base frame.

Housed within is a long-stroke linear actuator assembly featuring a hardened steel ball screw and a PSC induction gear motor. This motor is optimized for intermittent duty, delivering the high starting torque required to raise and lower the table consistently and safely. The actuator’s internal freewheeling safety mechanism prevents overtravel by mechanically disengaging motion at each stroke limit—no external sensors needed.

Key Features:

• Full-length uplift post for 21"–29" table height configurations
• American-built using cast iron, alloy steel, and powder-coated steel
• Inner and outer tube design with internal shims for rigidity
• Mounted long-stroke actuator with PSC gear motor and worm gear reducer
