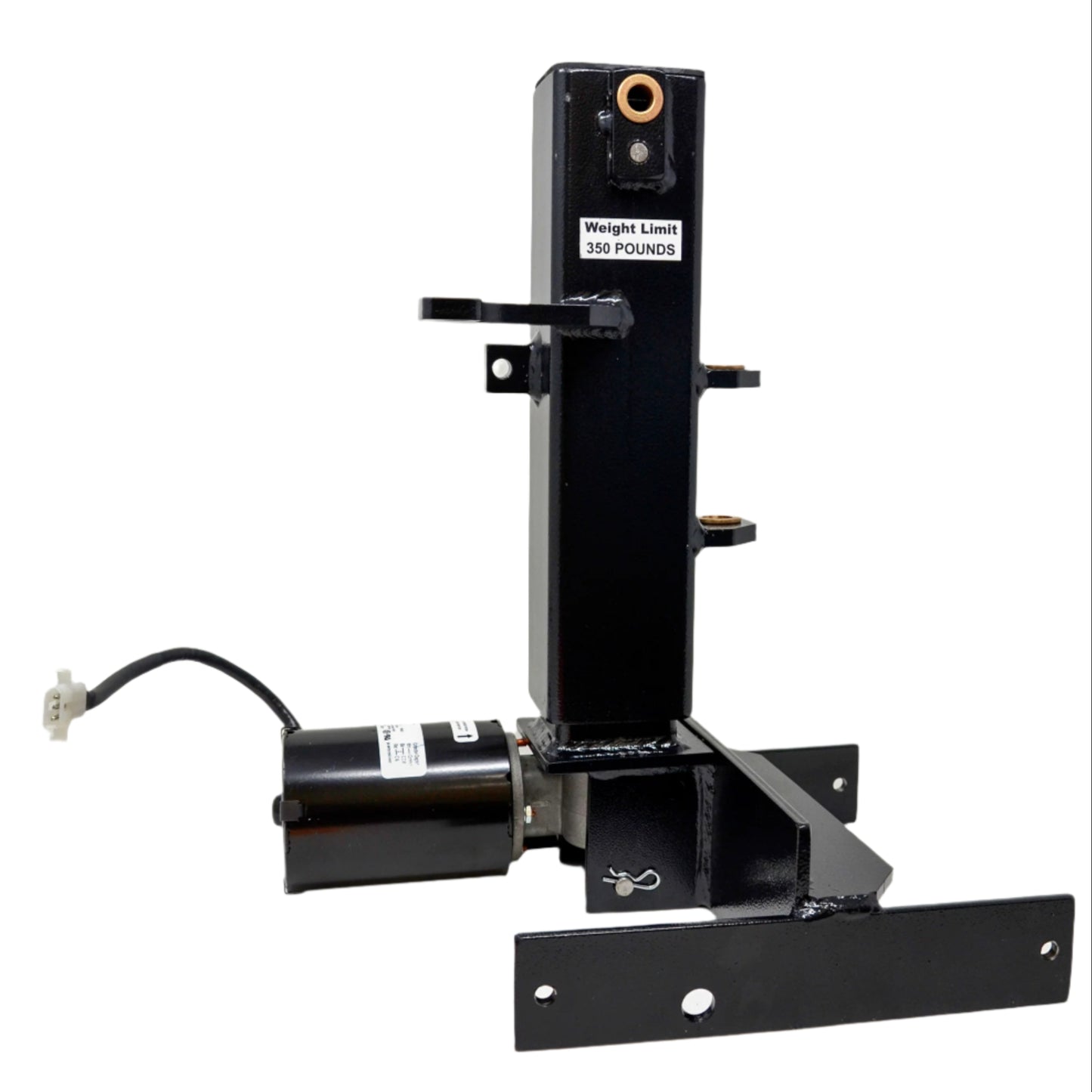

Elevation Uplift Assembly – Short Stroke (for 18.5"–24" Table Height)

The Short-Stroke Elevation Uplift Assembly is the complete center post lift mechanism for Leander 950 Series Flexion Distraction Tables, configured for a height range of 18.5" to 24". Proudly manufactured in the USA, this heavy-duty assembly combines structural strength, precision motion, and dependable performance in one fully integrated unit.

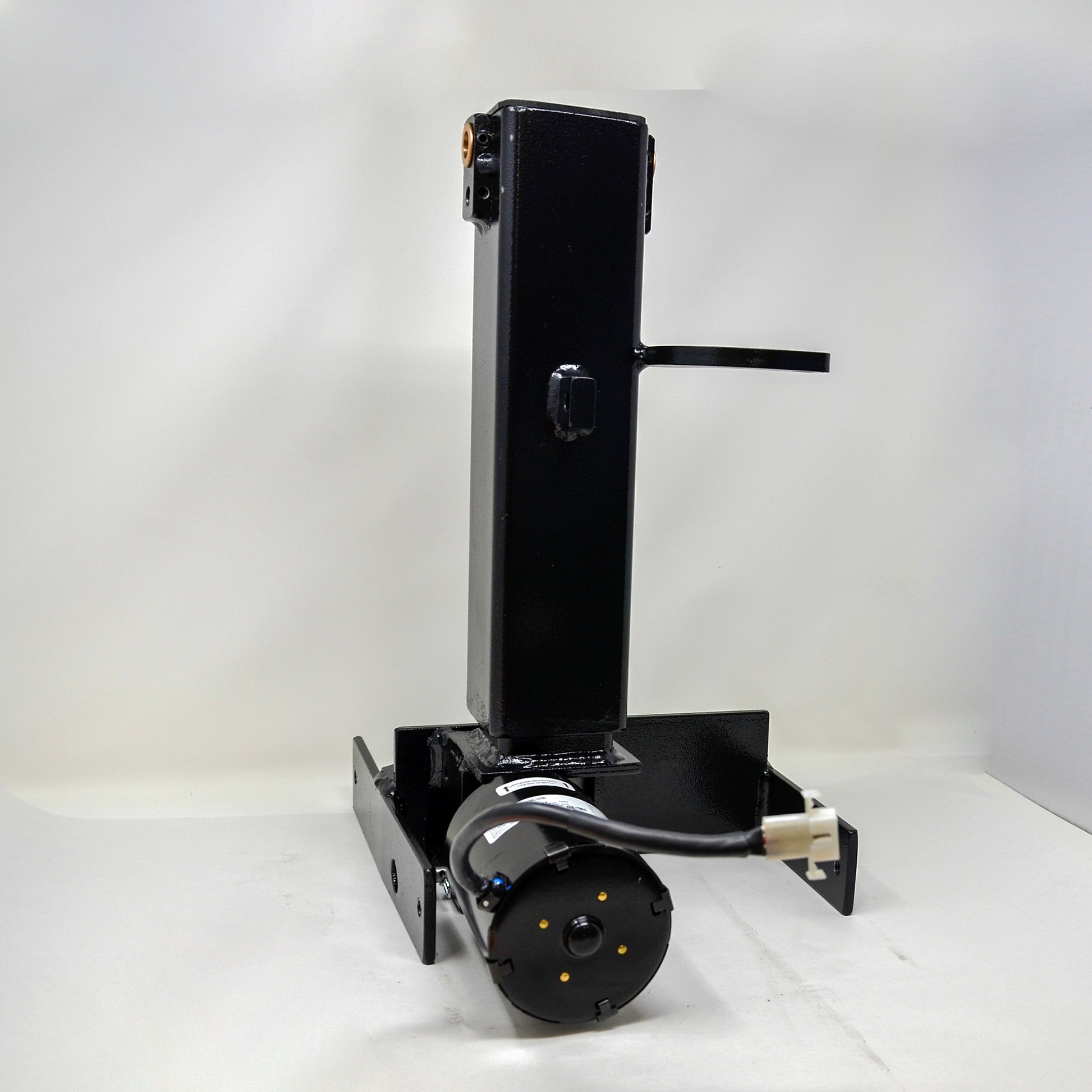

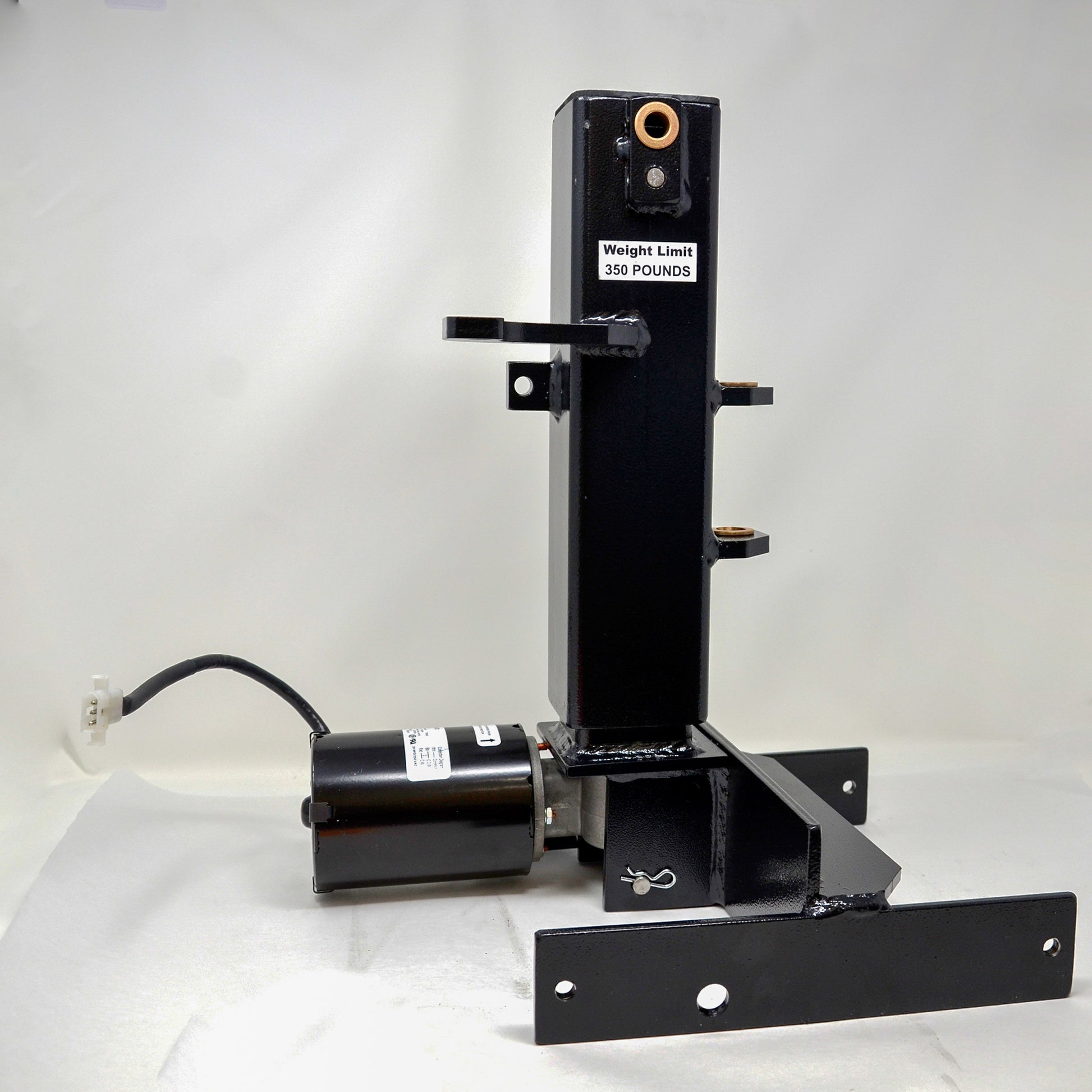

At its core is a black powder-coated steel outer tube, fitted with factory-mounted frame supports and an internal actuator assembly. The outer tube slides over a reinforced inner tube, precision-shimmed for stability, and terminates in a base frame mounting bracket for secure attachment to the table chassis.

Inside, a hardened steel ball screw actuator powered by a permanent split capacitor (PSC) induction motor delivers smooth, high-torque elevation with an intermittent duty cycle ideal for clinical use. A built-in freewheeling mechanism at the end of stroke provides overtravel protection without the need for external limit switches.

Key Features:

• Complete center post lift system for 18.5"–24" height models
• American-made with precision-welded frame mounts and base bracket
• Black powder-coated steel housing with inner support tube and shims
• Integrated short-stroke actuator with high-torque PSC motor
• Built-in stroke limit protection via internal freewheeling ball screw
• Fully assembled and ready for installation
