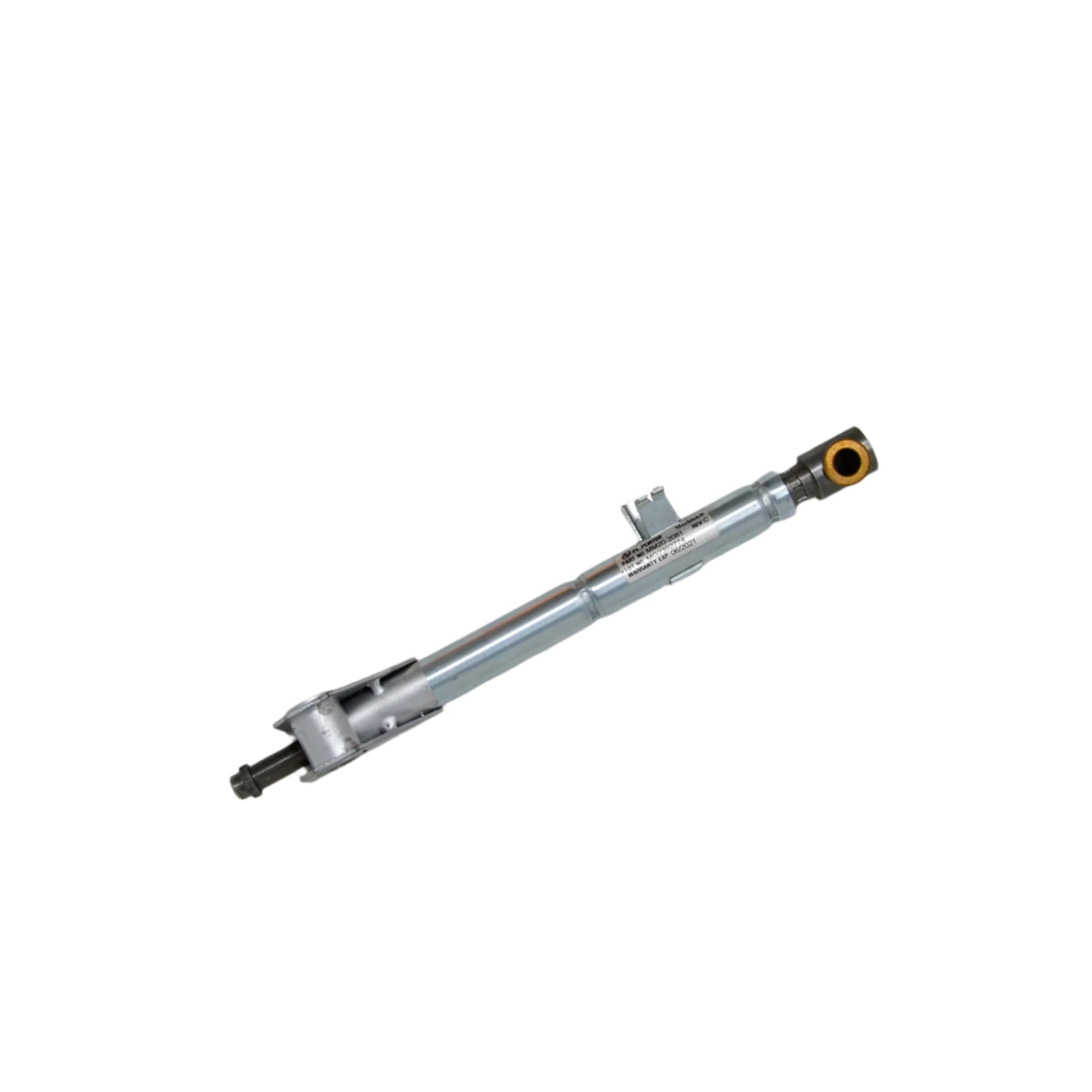

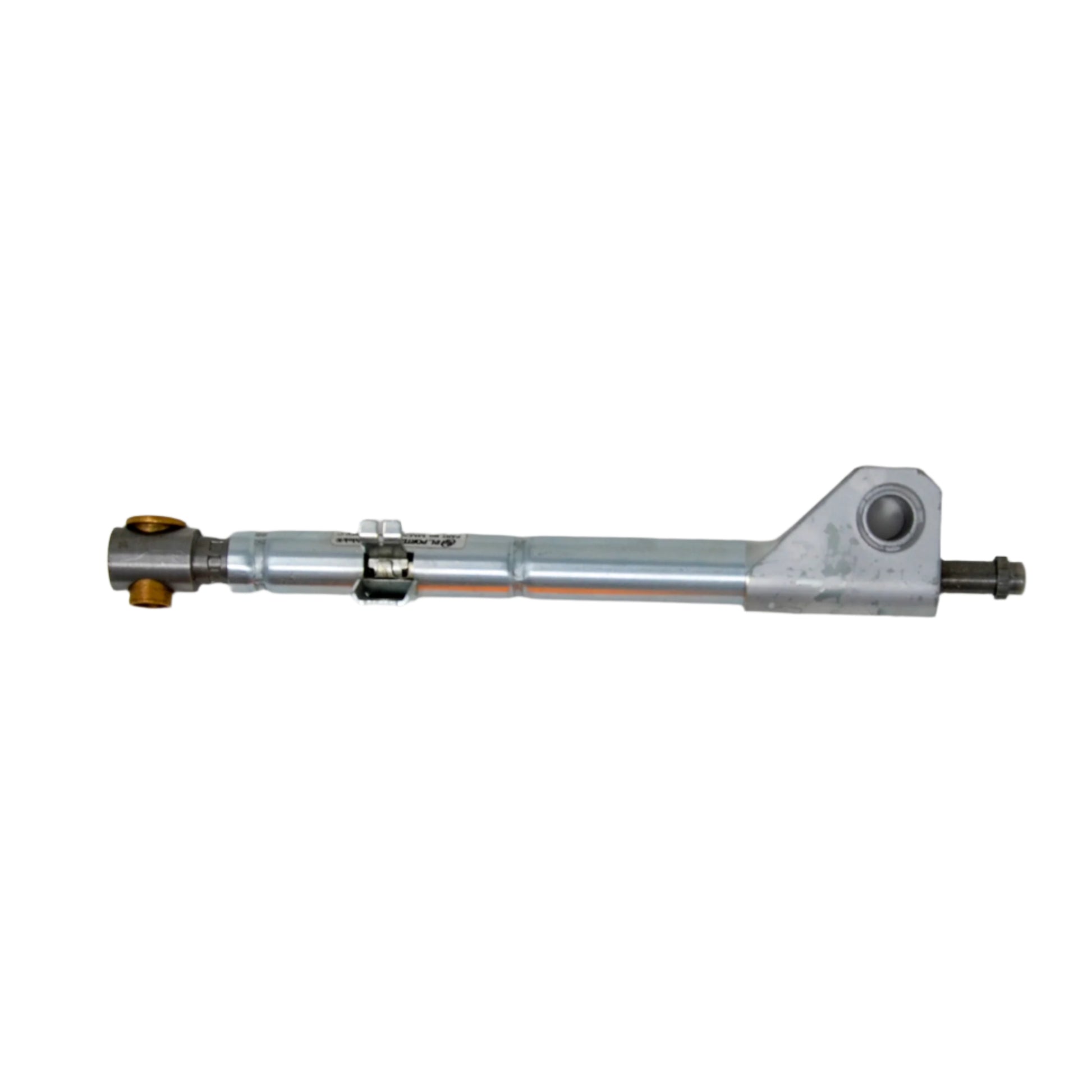

Pushrod Mechlok – Adjustable Linear Positioner (21"–29" Variable Height Tables)

The Pushrod Mechlok is a precision-engineered locking linear positioner that connects the cam/gearbox assembly to the pelvic frame mount, driving the flexion-distraction motion on Leander tables equipped with variable height center post systems.

Custom-fabricated in the USA by an aerospace-grade control systems manufacturer, this high-performance component provides multi-positional locking capability, allowing the practitioner to fine-tune the angle and level of the caudal section independent of the center post.

Because variable height tables lift from the center, the caudal end does not automatically rise in parallel. The Pushrod Mechlok solves this by offering a secure, adjustable linkage that allows for:

• Precise leveling of the caudal section

• Custom angle control for the flexion-distraction technique

• Enhanced clinical control over table biomechanics

🔧 Product Features:

• Designed for 21"–29" variable height Leander tables

• Connects gearbox/cam to pelvic frame for flexion control

• Allows multi-positional locking for precise angle adjustment

• Built by a U.S. aerospace-grade systems company

• Increases table versatility and clinician control over patient positioning

For tables with variable height, the Pushrod Mechlok is essential to maintaining smooth, controlled flexion and achieving accurate patient angles with every adjustment.

Note: This Pushrod Mechlok is for tables with a 21"–29" height range.
If your table has a shorter 18.5"–24" range, please see our alternate model.
